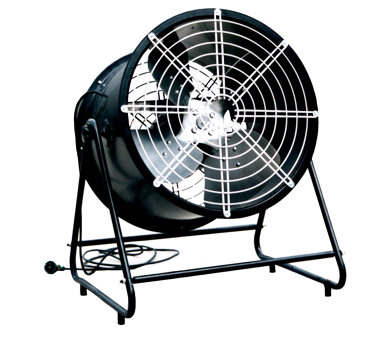

| MF axial flow fans |
|
|
| |
| It is a circular arc aerofoil axial flow fan developed specially in the case of increasingly more inflatable advertising model at home. It has a big lift coefficient and operates stably. The support may be disassembled by parts and installed easily. It especially can be used together with “air dancers”. |
| |
|
Machine No.
|
Motor Power Kw
|
Rotation Speed r/min
|
Volume Flow m3/h
|
Pressure Pa
|
|
MF-3
|
0.18
|
1450
|
2550
|
60
|
|
MF-4
|
0.37
|
1450
|
6100
|
177
|
|
MF-5I
|
0.55
|
1450
|
8600
|
195
|
|
MF-5II
|
0.75
|
1450
|
10800
|
206
|
|
MF-6
|
1.5
|
1450
|
13800
|
300
|
|
MF-7
|
3
|
1450
|
24600
|
350
|
|
