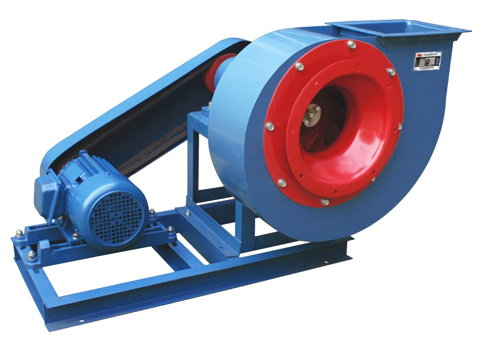

| C4-73 centrifugal fans |
|
|
| |
| It will not retain dust but can stand wear and tear. It is applied to discharging gas that contains dust, wooden scraps, fine fiber, etc. (a dust collection device must be arranged in front of fan in the case of hard particles), and common ventilation as well. |
| |
|
Machine No.
|
Motor Power Kw-P
|
Rotation Speed r/min
|
Volume Flow
m3/h
|
Pressure Pa
|
|
3.6C
|
7.5-2
|
4000
|
4250-7760
|
3138-1863
|
|
4.0-2
|
3150
|
3100-5750
|
1863-1127
|
|
2.2-2
|
2500
|
2640-4870
|
1225-735
|
|
1.5-2
|
2240
|
2380-4350
|
1029-588
|
|
0.75-4
|
1800
|
1930-3510
|
637-392
|
|
0.75-4
|
1600
|
1725-3150
|
490-294
|
|
4.5C
|
15-2
|
3550
|
7400-13500
|
3922-2255
|
|
7.5-2
|
2800
|
5800-10500
|
2451-1422
|
|
2.2-2
|
1800
|
3700-6800
|
980-588
|
|
1.1-4
|
1400
|
2900-5300
|
608-362
|
|
5.5C
|
22-2
|
2800
|
10600-19350
|
3667-2177
|
|
11-2
|
2240
|
8400-15350
|
2314-1372
|
|
5.5-2
|
1800
|
6800-12400
|
1471-872
|
|
3-2
|
1400
|
5260-9650
|
902-539
|
|
1.5-4
|
1120
|
4220-7700
|
578-343
|
|
